What PCB specifications can you produce?

We handle a wide range of boards, from single-sided and double-sided to high multilayer, build-up, rigid-flex, copper core, and heavy-copper boards. We select the optimal production method based on your application, PCB specifications, quantity, delivery requirements, and cost.

Do you have experience producing specialty boards such as rigid-flex or copper core?

Yes. We have a track record of producing specialty boards, including 2-stage build rigid-flex boards and copper core boards.

Can I request an integrated service from PCB design through production?

Yes. By integrating PCB design and production, we achieve quality and efficiency that faithfully reflects design intent. Requests for production only or design only are also accepted.

Can you select the optimal production partner based on cost and delivery requirements?

Yes. Leveraging our extensive domestic and international manufacturing network, we propose the optimal production solution based on your application, PCB specifications, quantity, delivery timeline, and cost.

What information is required for a PCB production quotation?

Please provide your Gerber data, PCB specifications (layer count, material, dimensions, quantity, surface finish, etc.), and your desired delivery date. We will review the details and provide a quotation.

Can you support both prototyping and mass production?

Yes. Working in coordination with our prototype assembly and mass production assembly departments, we provide integrated support from prototyping through to mass production.

PCB Production | Pulax Co., Ltd.

Through our extensive domestic and international manufacturing network
We flexibly provide optimal PCB production

Through collaboration with reliable manufacturing partners centered in Japan, China, and Korea,we have built a flexible PCB production system capable of addressing diverse manufacturing needs.

From prototyping to mass production, we select the optimal manufacturing site according to all conditions including application, PCB specifications, manufacturing quantity, delivery time, and cost,providing manufacturing solutions with an excellent balance of quality, cost, and speed.

We also support products with special technical requirements such as high multilayer boards, high-frequency/high-speed signal compatible boards,build-up boards, and flexible boards.

Leveraging technical knowledge throughout all processes from design to manufacturing, we provide stable supply of reliable PCBs.

Key Features

PCB Production Meeting Your Needs

For all requirements in prototyping and mass production, we provide optimal proposals leveraging our extensive domestic and international network.
By using optimal technology, manufacturing methods, and materials according to product applications, we can support PCB production that meets various needs.

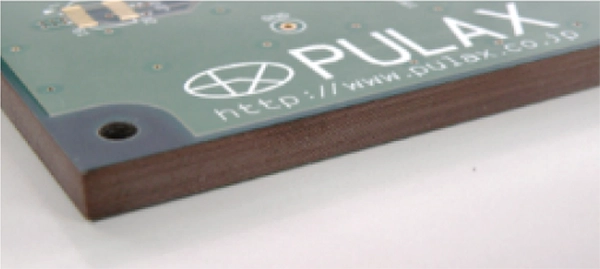

High-multilayer board cross-section — High-Multilayer Boards
(up to 32 layers achieved)

Build-up board cross-section and 3D structure — Build-up Boards

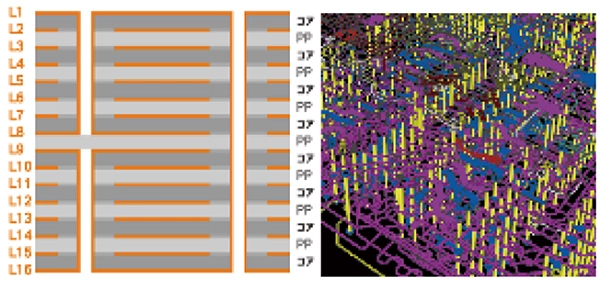

IVH (Interstitial Via Hole) board layer structure — IVH Boards

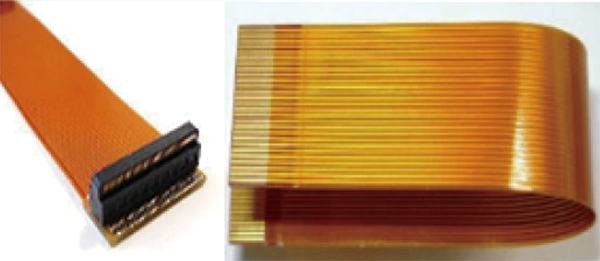

Flexible board with connector — Flexible Boards

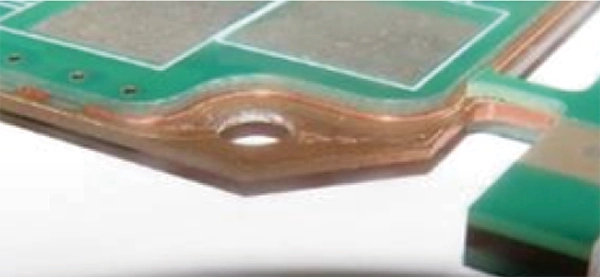

Heavy-copper, copper-core, and aluminum-base board — Heavy-Copper / Copper-Core /
Aluminum-Base Boards

Major Applications and Layer Configurations

High-Frequency Characteristics Applications
Controlled impedance boards, Low dielectric material boards

Compact/Lightweight Applications
Build-up boards, Flexible boards, Rigid-flex boards

Heat Dissipation/High Current Applications
Heavy copper foil boards, Metal base boards, Copper core boards, Copper post boards, Copper inlay boards, Busbar boards

Track Record

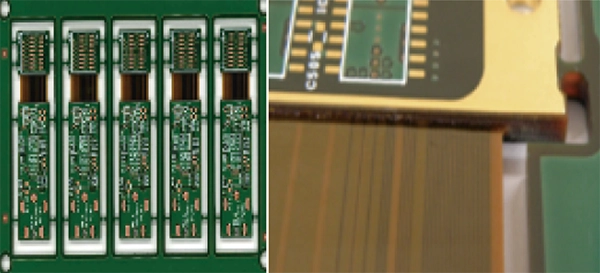

2-Stage Build Rigid-Flex Board

Layer Configuration:

8 layers (2-4-2 build structure / L3-L4 Flex)

Application:

Compact camera module board

Copper Core Board

Layer Configuration:

6 layers (L1-L3, L4-L6 IVH structure)
