Liquid Lens Head-Separated Compact Global Shutter Camera

Ideal for integration into industrial robots and other industrial products and devices.

POINT 1:
The separated head's diameter is only Φ18mm, enabling
integration into narrow spaces in products and devices.
POINT 2:
Adopts global shutter CMOS sensor.
Ideal for capturing moving subjects.
POINT 3:
Long head cable, up to 10 m, enabling
high-speed transmission (max. 1.4 Gbps).

Focus adjustment possible from 5 cm in front of the lens to infinity

  • Focus sample at 5 cm distance
  • Focus sample at 10cm distance
  • Focus sample at 50cm distance
  • Focus sample at infinity

Structure

Applying voltage to conductive materials and conductive liquid changes the shape of insulating droplets.
Depending on the applied voltage, it becomes a diverging lens, flat lens, or converging lens.

  • Liquid lens diverging structure
  • Liquid lens flat structure
  • Liquid lens converging structure

Features

Enables high-speed focus adjustment at speeds far exceeding mechanical lenses.
With no moving parts at all, it achieves durability extending to hundreds of millions of cycles.

  • High Durability
  • High Speed
  • Low Noise
  • Low Power Consumption

Product Specifications

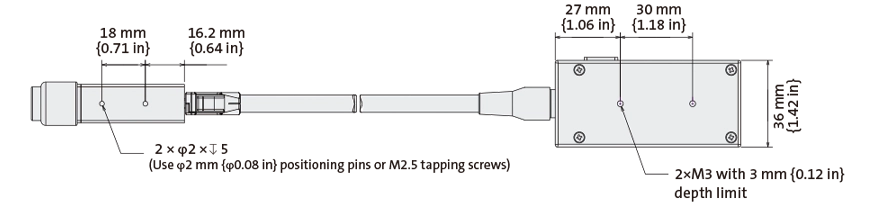

Camera head dimensions

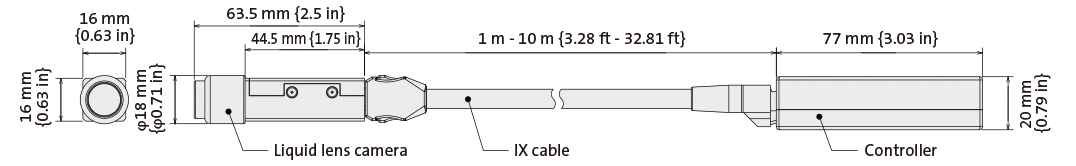

Control board dimensions

Main Specifications

Main Specifications
Image Sensor AR0135CS (Onsemi)
[Global Shutter]
Image Circle 1/3 in, φ6.0 mm
Interface USB 3.0 compliant (UVC1.1 compliant)
Effective Pixels 1280×960 (max. 54 fps)
1280×720 (max. 71 fps)
Main Specifications
Output Format YUY2, RGB24
Image Processing Zynq-7000
Trigger Mode Compatible with external trigger inputs
Camera Head Size φ18 mm × 63.5 mm
Head Cable Length Standard 3 m (supports 1 m to 10 m)
*Compatible with robot cables
